PWAS - DMS
Accidents involving vehicles reversing are a common safety concern on worksites. The Proximity Warning and Alert System (PWAS) helps mitigate these risks by using sensors to detect all nearby people and objects, even if they are not tagged. The system provides timely warnings and integrates with the vehicle’s control systems to enhance collision avoidance. Additionally, it features a driver monitoring system to track operator behaviour and alertness, further improving safety.
- Wide Coverage: Provides extensive angle detection for comprehensive surveillance.
- Object Detection: Identifies any objects entering the detection zone.
- Warnings: Issues visual and audible alerts for potential dangers.
- Blind Spot Elimination: Reduces or eliminates areas not visible to the operator.
- Adjustable Range: Allows customization of the detection range from 6 to 12 meters.
- Bluetooth Configuration: Facilitates easy setup and adjustments via a mobile app.
- Universal Fit: Compatible with all types of machinery.
- Incident Reporting: Records and reports events and hazards for better risk management.
- Driver Monitoring System: Tracks and assesses operator behaviour and alertness to enhance safety.
PWAS Control Unit
The PWAS control unit is positioned next to the heavy equipment operator inside the vehicle. It triggers an alarm when it detects personnel or objects approaching the hazard zone, alerting the operator to potential dangers. The unit also records events and hazards, providing valuable data for assessing and managing worksite risks. Additionally, it features a driver monitoring system to track operator behaviour and alertness, further improving safety.
PWAS Sensor
The PWAS sensor is installed on the rear of the vehicle, creating an extensive detection zone that identifies personnel and objects. The standard detection range is set to eight meters, with the flexibility to be adjusted based on the specific requirements of the site.

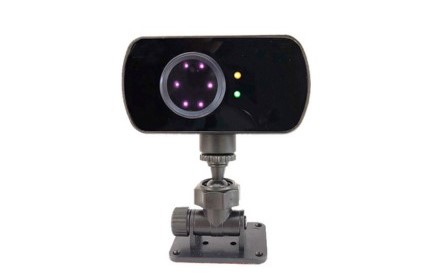

Driver Monitoring System
The driver monitoring system enhances safety by detecting signs of operator fatigue and inattention, such as drowsiness, smoking, or phone use. When these signs are detected, the system issues immediate alerts using both a flashing LED light and an audible alarm. These combined alerts ensure that the operator is promptly informed and encouraged to stay focused, thereby preventing accidents and significantly improving overall worksite safety.
Proximity Zone
Backover accidents often occur due to limited operator visibility. The Proximity Zone is designed to mitigate this issue by defining a specific hazard area where objects crossing it can be detected. The default Proximity Zone covers an approximate 180-degree field with an 8-meter range, which can be adjusted according to the site’s safety requirements.
PWAS Camera & Monitor
Integrating the PWAS Camera and Monitor with the PWAS enhances operator confidence by improving visibility of personnel and property in the machinery's blind spots. Cameras are installed at both the front and rear of the machinery, while the monitor is situated in the cab to provide clear visual feedback and alerts. Additional cameras can be added as needed to meet specific site requirements.
